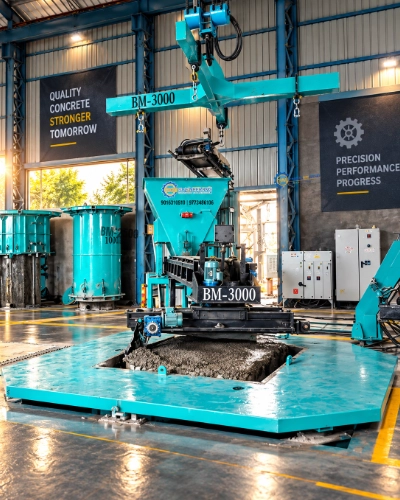

BM-3000 Vertical Vibration Casting Concrete Pipe Making Machine is one of the most advanced Concrete pipes making technology in the world, which integrate the technology of mechanical, electric, Hydraulic and Semi and Fully Automatics. The machine can produce products in BM-3000 size 600–3000 mm and a length of up to 2.5 meters.
BM-3000 is designed for vertical vibration casting of large-diameter concrete pipes, combining controlled feeding, high-frequency vibration, hydraulic operation and PLC-based control. It supports pipe production from 600 mm to 3000 mm diameter and lengths up to 2.5 m, subject to the selected mould and configuration.
Developed with a strong structural framework to provide stability and dependable performance for demanding concrete pipe manufacturing operations.
The vertical forming configuration is designed to support large-format concrete pipe production while maintaining an organized and controlled manufacturing process.
The forming system supports effective concrete distribution and compaction, helping achieve uniform pipe geometry and reliable finished results.
Designed for demanding manufacturing environments where consistent output and efficient handling of larger concrete pipe requirements are important.
Mechanical, hydraulic and electrical functions are coordinated to support smooth operation and controlled movement throughout the pipe-forming cycle.
The BM 3000 is designed as a production-focused machine for manufacturers requiring a robust and dependable solution for regular concrete pipe manufacturing.
| Measurement | Round Pipe Length: 2500 mm | 8 Hours | Box Culvert Length: 2000 mm | 8 Hours |
|---|---|---|
| 300 mm | 70 / 8 hr | — |
| 450 mm | 60 / 8 hr | — |
| 600 mm | 55 / 8 hr | 50 / 8 hr |
| 800 mm | 50 / 8 hr | 40 / 8 hr |
| 900 mm | 40 / 8 hr | 35 / 8 hr |
| 1000 mm | 34 / 8 hr | 30 / 8 hr |
| 1200 mm | 30 / 8 hr | 25 / 8 hr |
| 1400 mm | 24 / 8 hr | 20 / 8 hr |
| 1600 mm | 18 / 8 hr | 18 / 8 hr |
| 1800 mm | 14 / 8 hr | 15 / 8 hr |
| 2200 mm | 10 / 8 hr | 12 / 8 hr |
| 2400 mm | 8 / 8 hr | 10 / 8 hr |
| 3000 mm | 7 / 8 hr | 8 / 8 hr |
A practical plant arrangement designed around the BM 3000 Vertical Concrete Pipe Making Machine, supporting efficient material flow, production, handling and finished pipe storage.
The BM 3000 Vertical Concrete Pipe Making Machine combines robust structural components with precision forming, vibration, feeding, hydraulic and control systems to support reliable and consistent concrete pipe production.

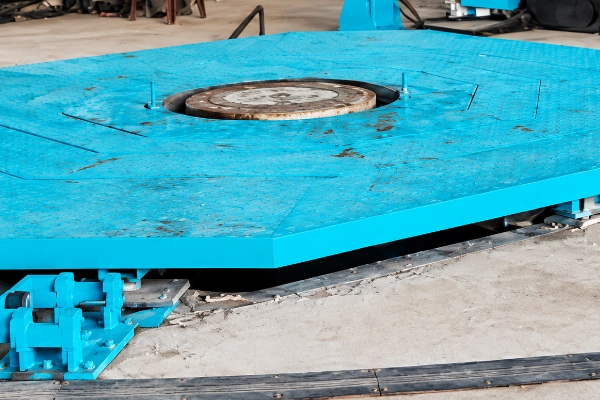

The robust structural frame forms the foundation of the BM 3000 machine, providing stability and support for the complete production assembly. It is designed to maintain structural rigidity during continuous concrete pipe manufacturing operations.

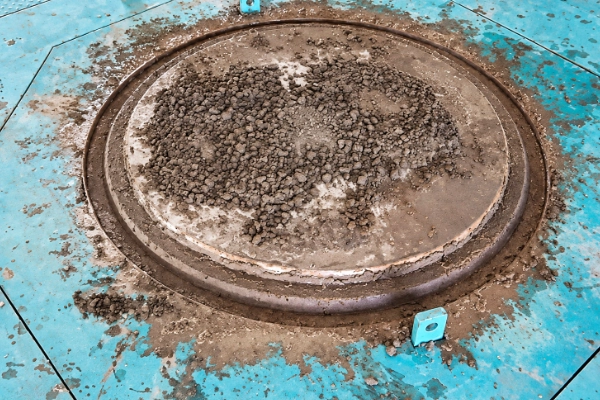

The electrically actuated vibration system provides controlled vibration during pipe formation, helping achieve effective concrete compaction. Adjustable vibration frequency supports consistent forming performance for different production requirements.

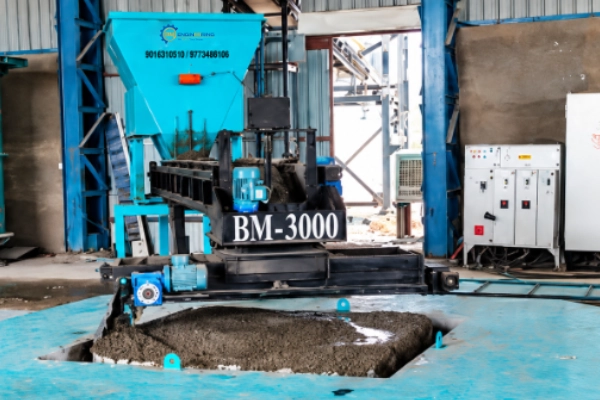

The concrete feeding arrangement incorporates a belt distributor to deliver and distribute concrete into the forming area. It supports smooth material flow and uniform concrete distribution during the pipe production cycle.

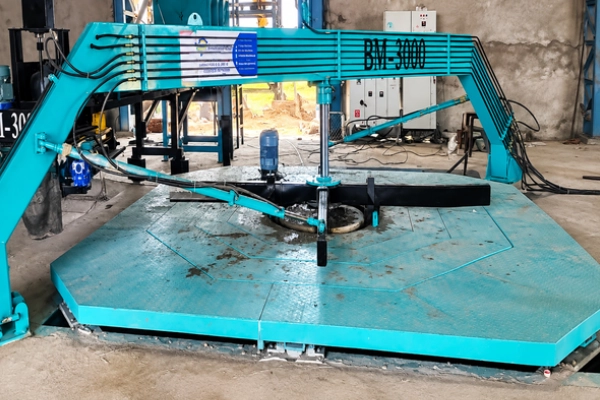

The integrated hydraulic system supports important machine functions, including conveyor movement, pressing and turning operations. It helps coordinate machine movements for smooth and reliable production performance.

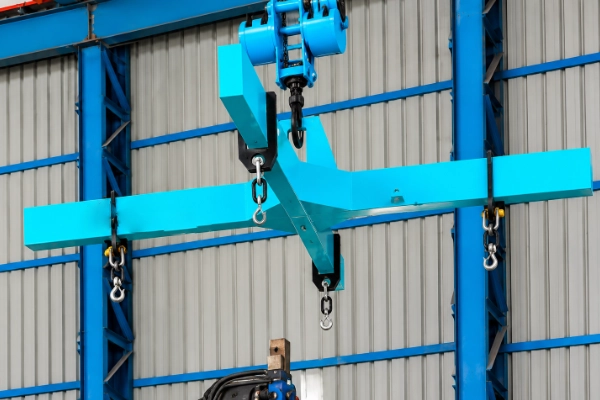

The mechanical lifting system is designed to accommodate different product lengths during the manufacturing process. It supports efficient product handling while maintaining a practical machine operating arrangement.

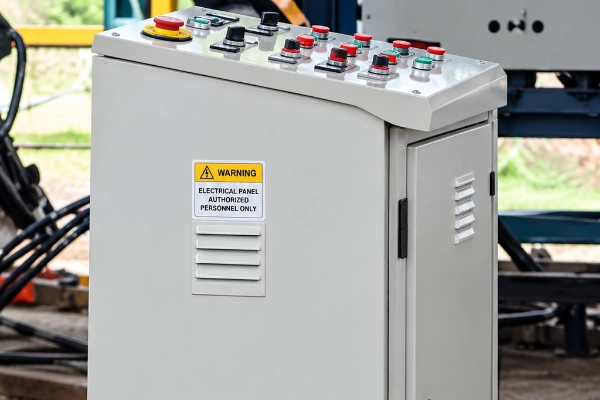

The centralized PLC control panel with digital display provides a convenient interface for machine operation and monitoring. It allows operators to manage important machine functions through a centralized control system.

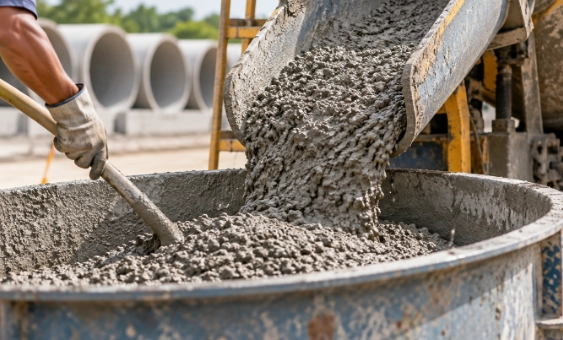

Prepare the required concrete mix according to the selected pipe specification and production requirement, maintaining a suitable consistency for vertical pipe forming.

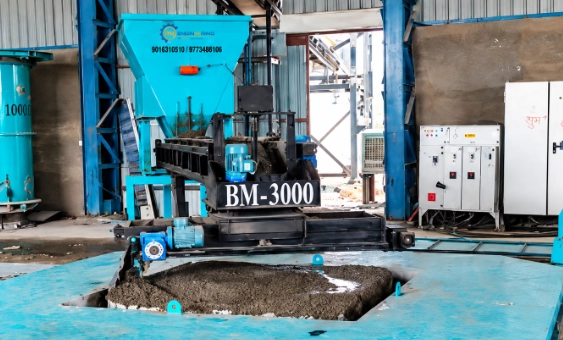

Feed the prepared concrete into the mould through the machine feeding arrangement while the forming system builds the pipe profile.

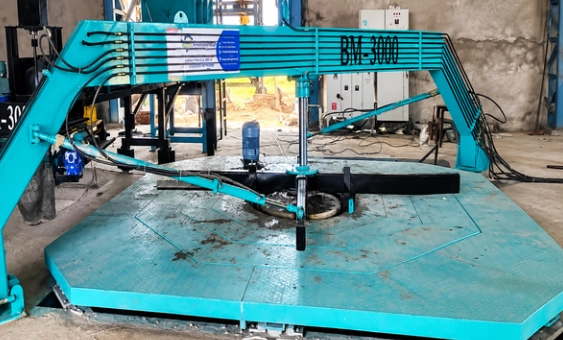

Controlled high-frequency vibration compacts the concrete around the core, helping achieve dense, uniform and dimensionally consistent pipe formation.

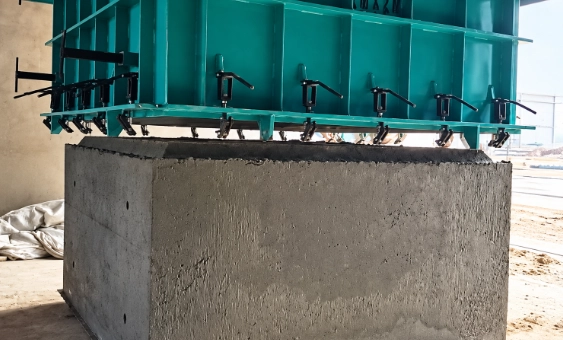

Release the mould after forming and move the newly produced pipe carefully to the designated handling and curing area.
The BM-3000 Vertical Concrete Pipe Making Machine is designed for manufacturers seeking a controlled and repeatable approach to concrete pipe production. Its vertical vibration casting system, integrated hydraulic functions, and PLC-based control system help coordinate the forming cycle and streamline machine operation. This combination supports a consistent production process and reliable product quality, making the BM-3000 a practical solution for demanding precast concrete manufacturing applications.
Minimum Pipe Diameter (mm)
Maximum Pipe Length (m)
Maximum Pipe Diameter (mm)
Main production area for vertical concrete pipe forming and controlled compaction.
Explore our range of high-performance machines engineered for reliable and efficient concrete pipe production.
Engineered for efficient, consistent and reliable concrete pipe production.
