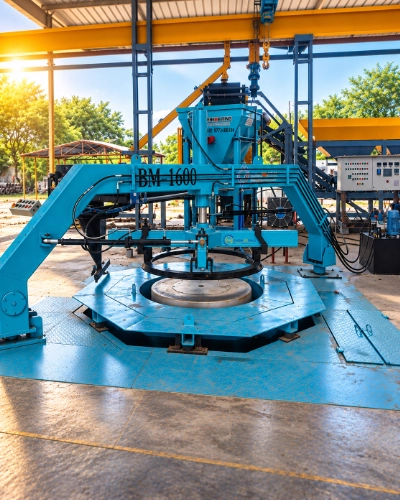

BM-1600 Vertical Vibration Casting Concrete Pipe Making Machine is one of the most advanced Concrete pipes making technology in the world, which integrate the technology of mechanical, electric, Hydraulic and Semi and Fully Automatics. The machine can produce products in BM-1600 size 300 mm to 1600 mm and a length of up to 2.5 meters.
The BM 1600 is a vertical vibration casting concrete pipe making machine engineered for efficient and consistent production of concrete pipes. It combines mechanical, electrical and hydraulic systems with semi-automatic and fully automatic operating options for a practical industrial production setup.
Built with a sturdy structural design to support dependable operation and long-term performance in demanding concrete pipe manufacturing environments.
The vertical forming arrangement is designed to facilitate controlled concrete pipe production while maintaining a compact and organized machine setup.
Engineered components work together to support accurate moulding and consistent pipe formation, helping manufacturers achieve uniform production results.
Designed to streamline the concrete pipe manufacturing process and support efficient production with reduced manual intervention.
The machine incorporates a coordinated mechanical system for smooth and dependable operation throughout the pipe-forming cycle.
Manufactured for industrial applications, the BM 1600 is designed to withstand regular production use while maintaining dependable performance.
| Measurement | Round Pipe Length: 2500 mm | 8 Hours | Box Culvert Length: 2000 mm | 8 Hours |
|---|---|---|
| 300 mm | 70 / 8 hr | — |
| 450 mm | 60 / 8 hr | — |
| 600 mm | 55 / 8 hr | 50 / 8 hr |
| 800 mm | 50 / 8 hr | 40 / 8 hr |
| 900 mm | 40 / 8 hr | 35 / 8 hr |
| 1000 mm | 34 / 8 hr | 30 / 8 hr |
| 1200 mm | 30 / 8 hr | 25 / 8 hr |
| 1400 mm | 24 / 8 hr | 20 / 8 hr |
| 1600 mm | 18 / 8 hr | 18 / 8 hr |
A practical plant arrangement designed around the BM 1600 Vertical Concrete Pipe Making Machine, supporting efficient material flow, production, handling and finished pipe storage.
The BM 1600 Vertical Concrete Pipe Making Machine combines robust structural components with precision forming, vibration, feeding, hydraulic and control systems to support reliable and consistent concrete pipe production.

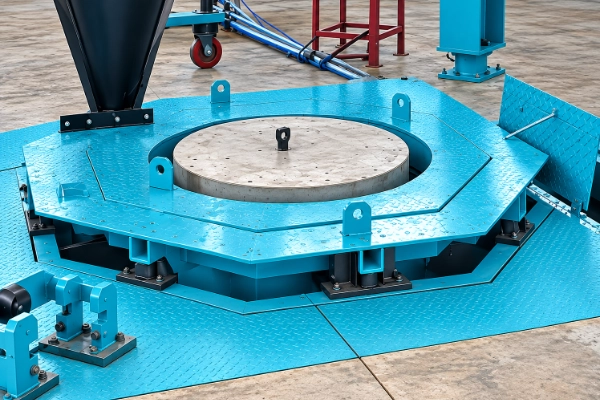

The robust structural frame forms the foundation of the BM 1600 machine, providing stability and support for the complete production assembly. It is designed to maintain structural rigidity during continuous concrete pipe manufacturing operations.

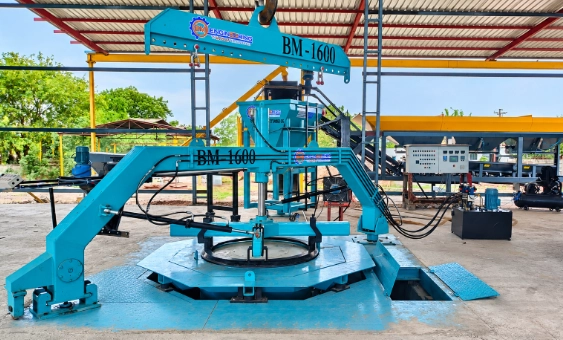

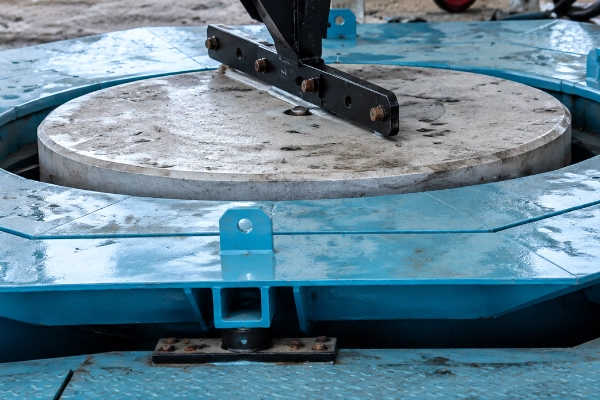

The electrically actuated vibration system provides controlled vibration during pipe formation, helping achieve effective concrete compaction. Adjustable vibration frequency supports consistent forming performance for different production requirements.

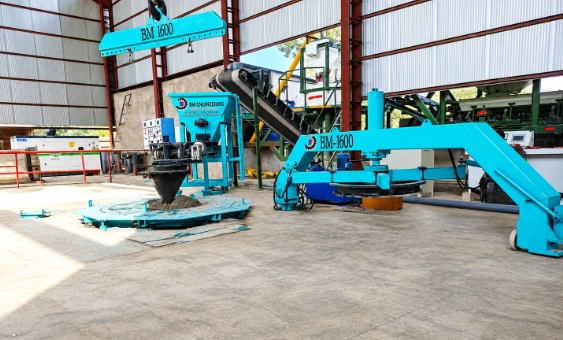

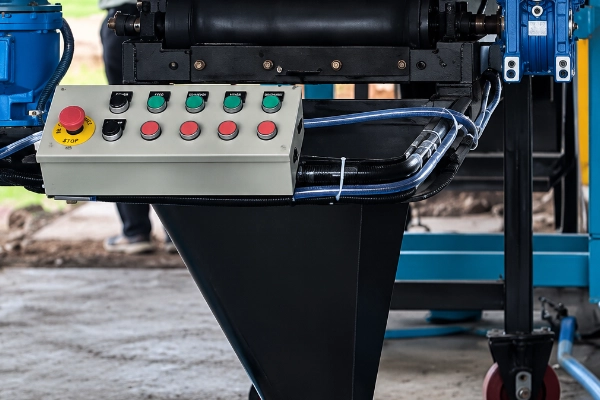

The concrete feeding arrangement incorporates a belt distributor to deliver and distribute concrete into the forming area. It supports smooth material flow and uniform concrete distribution during the pipe production cycle.

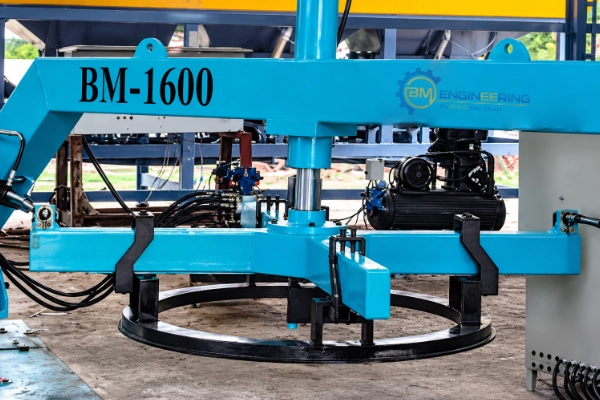

The integrated hydraulic system supports important machine functions, including conveyor movement, pressing and turning operations. It helps coordinate machine movements for smooth and reliable production performance.

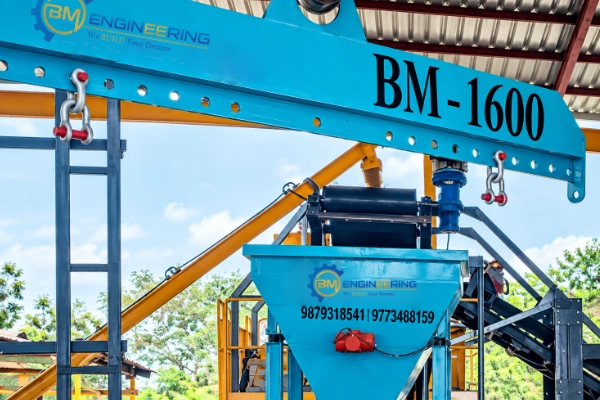

The mechanical lifting system is designed to accommodate different product lengths during the manufacturing process. It supports efficient product handling while maintaining a practical machine operating arrangement.

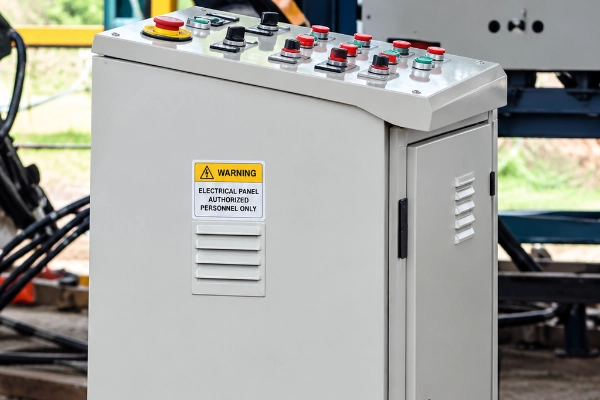

The centralized control panel with digital display provides a convenient interface for machine operation and monitoring. It allows operators to manage important machine functions through a centralized control system.

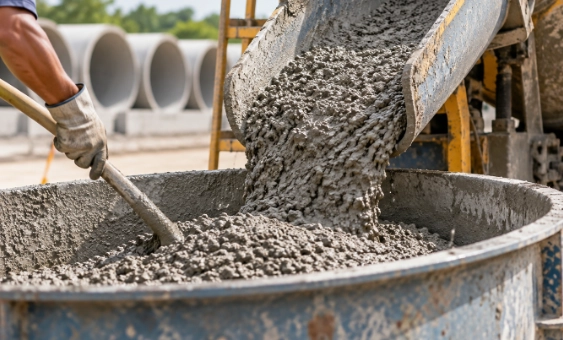

Prepare the required concrete mix according to the selected pipe specification and production requirement, maintaining a suitable consistency for vertical pipe forming.
Feed the prepared concrete into the mould through the machine feeding arrangement while the forming system builds the pipe profile.
Apply controlled vibration during forming to support effective concrete compaction and help achieve a dense, consistent pipe structure.

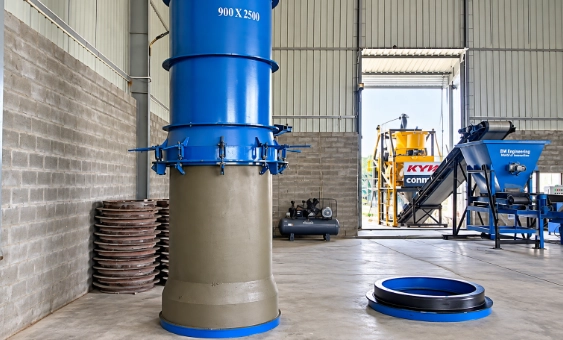

Complete the forming cycle and handle the newly produced pipe carefully using the machine's integrated handling and lifting arrangement.
The BM 1600 Vertical Concrete Pipe Making Machine is designed for manufacturers seeking a dependable and versatile solution for vertical concrete pipe production across a broad range of pipe diameters. Combining vertical casting technology, controlled vibration, hydraulic functions, and an integrated control panel, the BM 1600 supports an organized and efficient production workflow. Its coordinated forming system can be configured to accommodate different pipe manufacturing requirements, making it a practical solution for precast concrete manufacturers focused on consistent production and operational reliability.
